AMITIME õhk-vesi soojuspumbad

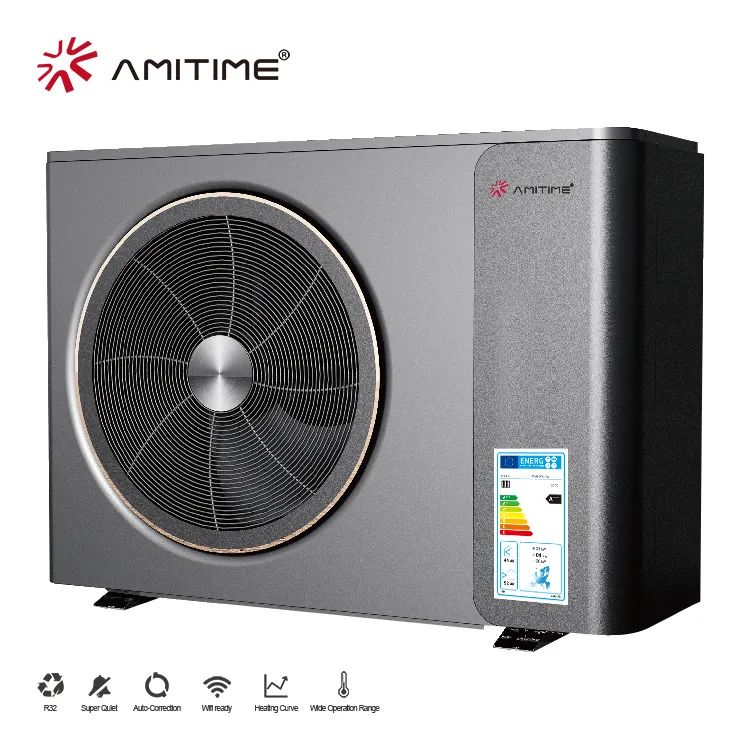

Amitime PAVH-06V1FXC monoblock õhk-vesi soojuspump 6 kW, hind 2200 eur+ km

Amitime PAVH-09V1FXC monoblock õhk-vesi soojuspump 9 kW, hind 2300 eur + km

Amitime PAVH-12V1FXC monoblock õhk-vesi soojuspump 12 kW, hind 2400 eur + km

Lisainfot leiad: AMITIME heatLITE monoblock air-to-water heat pumps

Model no.			PAVH-06V1FXC	PAVH-09V1FXC	PAVH-12V1FXC
IP rating		IPXX	IPX4
Power supply
Power supply - Outdoor unit	Outdoor unit	V / Hz / Ph	230V/50Hz/1ph
Power supply - Outdoor unit	Fuse Outdoor unit	A	1p/ A/C
Performance
SCOP - Average climate, low temperature		W	4.6	4.61	4.62
Energy class		A+++
Min/max heating capacity (1)	A7/W35	kW	3.4~6.5	5.4~9.7	5.9~11.9
El. heating power input min/max (1)		kW	0.74~1.5	1.2~2.4	1.3~2.9
C.O.P min/max (1)		W/W	4.26~4.6	4.04~4.53	4.05~4.67
Min/max heating capacity (2)	A7/W35	kW	3.1~5.9	5.1~8.8	6~11.5
El. heating power input min/max (2)		kW	0.92~1.7	1.5~2.9	1.6~3.6
C.O.P min/max (2)		W/W	3.41~3.5	3.03~3.4	3.19~3.66
Min/max cooling capacity (3)	A35/W18	kW	3.1~6.5	4.2~9.1	5.1~11.3
El. cooling power input min/max (3)		kW	0.82~1.9	1.28~2.5	1.34~3.4
E.E.R. min/max (3)		W/W	3.32~3.8	3.28~3.71	3.33~3.82
Min/max cooling capacity (4)	A7/W35	kW	1.8~4.8	3.8~7.5	4.2~8.1
El. cooling power input min/max (4)		kW	0.66~2.54	1.6~2.7	1.6~3.1
E.E.R. min/max (4)		W/W	2.54~2.7	2.46~2.72	2.61~2.73
Min/max ambient temp. in heating mode		°C	-25~43
Min/max ambient temp. in cooling mode		°C	7~43
Max flow temp. in heating mode		°C	60
Min flow temp. in heating mode		°C	20
Min flow temp. in cooling mode		°C	7
Sound power level		dB (A)	52	53	53
Components
Fan	Set	pcs	1
	Airflow	m³/h	2500	3280	3280
	Rated power	W	32	62	62
	Blade diameter	mm	Φ455	Φ550	Φ550
Titanium tube heat exchanger	Water press. drop	kPa	22	22	26
Titanium tube heat exchanger	Piping connection	Inch	1 ''Inner gorve
Refrigerant	type	/	R32
Refrigerant	charge	Inch	0.75	1.15	1.3
Compressor	type	/	Rotary
	Compressor oil	type	FW68DA or equivalent
	Comp. oil volume	L	0.45	0.65	0.65
	Compressor heater	W	30
Hydraulics
Minimum water flow		m³/h	0.5	0.8	1.03
Nominal water flow		m³/h	1.0	1.6	2.06
Hydraulic connections		Size	1 ''Inner gorve
Dimensions and weight
Net Dimensions (Lx D x H)		mm	1015x380x700	1175x380x845	1175x380x845
Brutto Dimensions (L x D x H)		mm	1080x470x865	1245x480x1020	1245x480x1020
Net weight		kg	70	79	82
Brutto weight		kg	81	90	93
Included with the unit
WiFI		Yes / No	Yes
Communication cable		Yes / No	Yes
Temperature sensors		m	20
